Novation Peak, 8 Voice Polyphonic Desktop Synthesizer

Zoom

Watch the Video

Condition Brand New
Warranty 3 Year Warranty
Delivery Free Delivery

Pre-filter and post-filter distortion per voice, plus global distortion.
Polyphonic aftertouch and linear FM. High-quality reverb, delay and chorus effects, and onboard arpeggiator
Extensive modulation system, with 16-slot modulation matrix and 16 direct assignments controlled on the front panel.
Three ADSR envelopes and two LFOs per voice, plus animate button
CV modulation input for integration with modular systems

More details

£1,238.00 ~~£1,649.99~~

Earn 1,238 Loyalty Points.

–+

AVAILABILITY:

Only 1 in stock, immediate despatch

Order soon for delivery
on using our express service

Finance this product

Condition Brand New
Warranty 3 Year Warranty
Delivery Free Delivery

Pre-filter and post-filter distortion per voice, plus global distortion.
Polyphonic aftertouch and linear FM. High-quality reverb, delay and chorus effects, and onboard arpeggiator
Extensive modulation system, with 16-slot modulation matrix and 16 direct assignments controlled on the front panel.
Three ADSR envelopes and two LFOs per voice, plus animate button
CV modulation input for integration with modular systems

More details

Product Details

Product: Novation Peak, 8 Voice Polyphonic Desktop Synthesizer

SKU: DDJ2898

Condition Brand New
Warranty 3 Year Warranty
Delivery Free Delivery

Description
Features
Specifications
Delivery & Returns
Customer Reviews

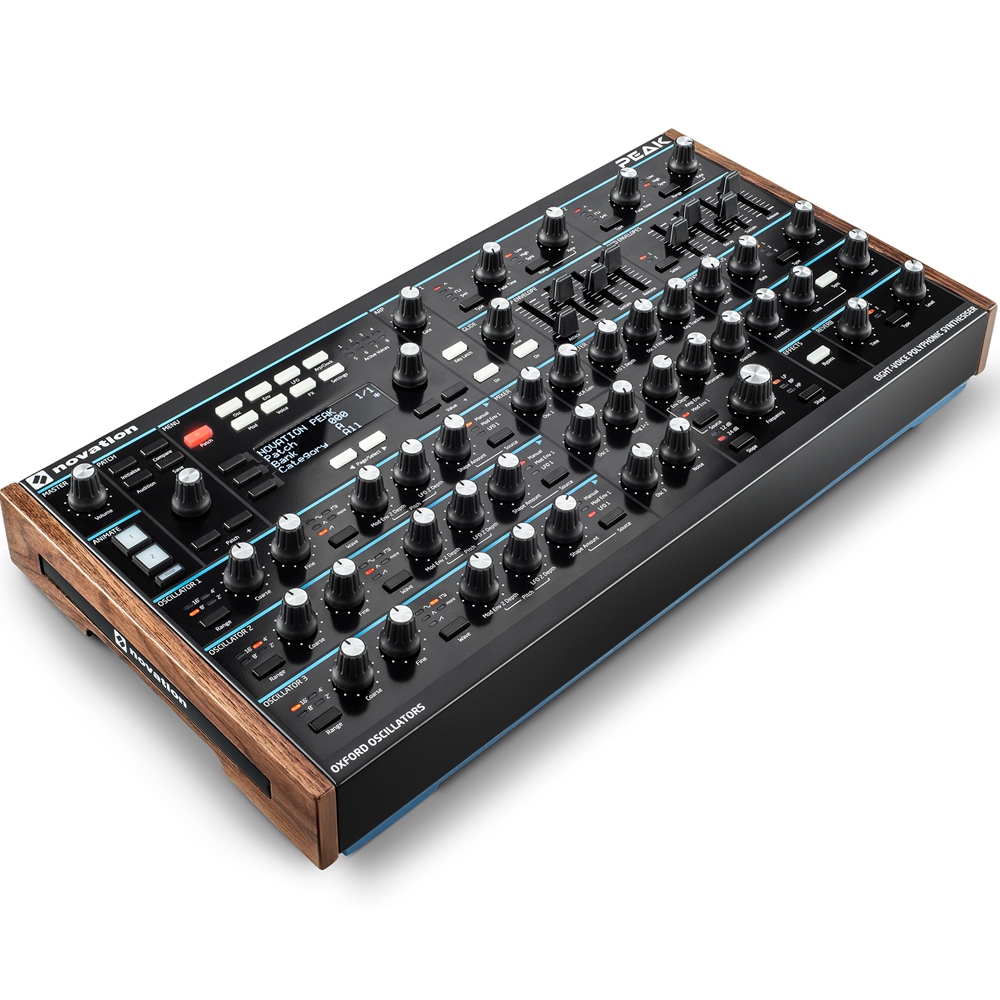

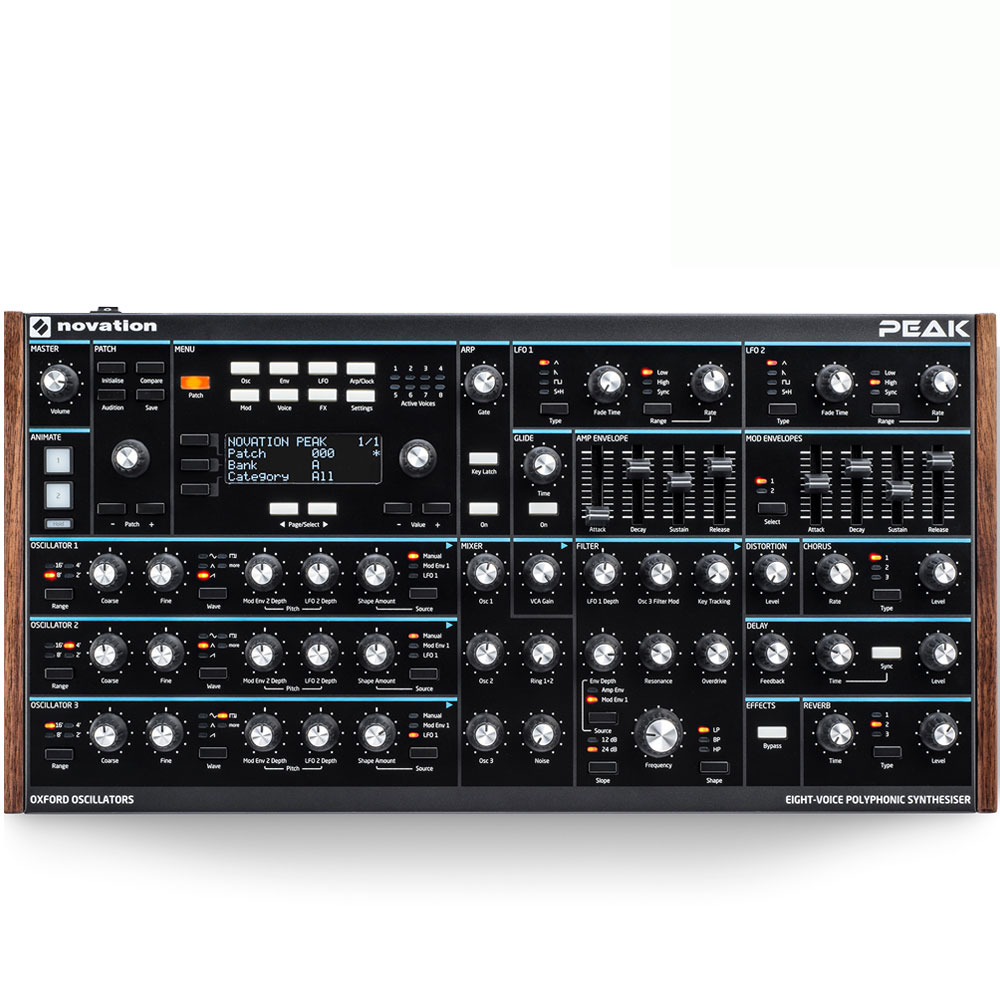

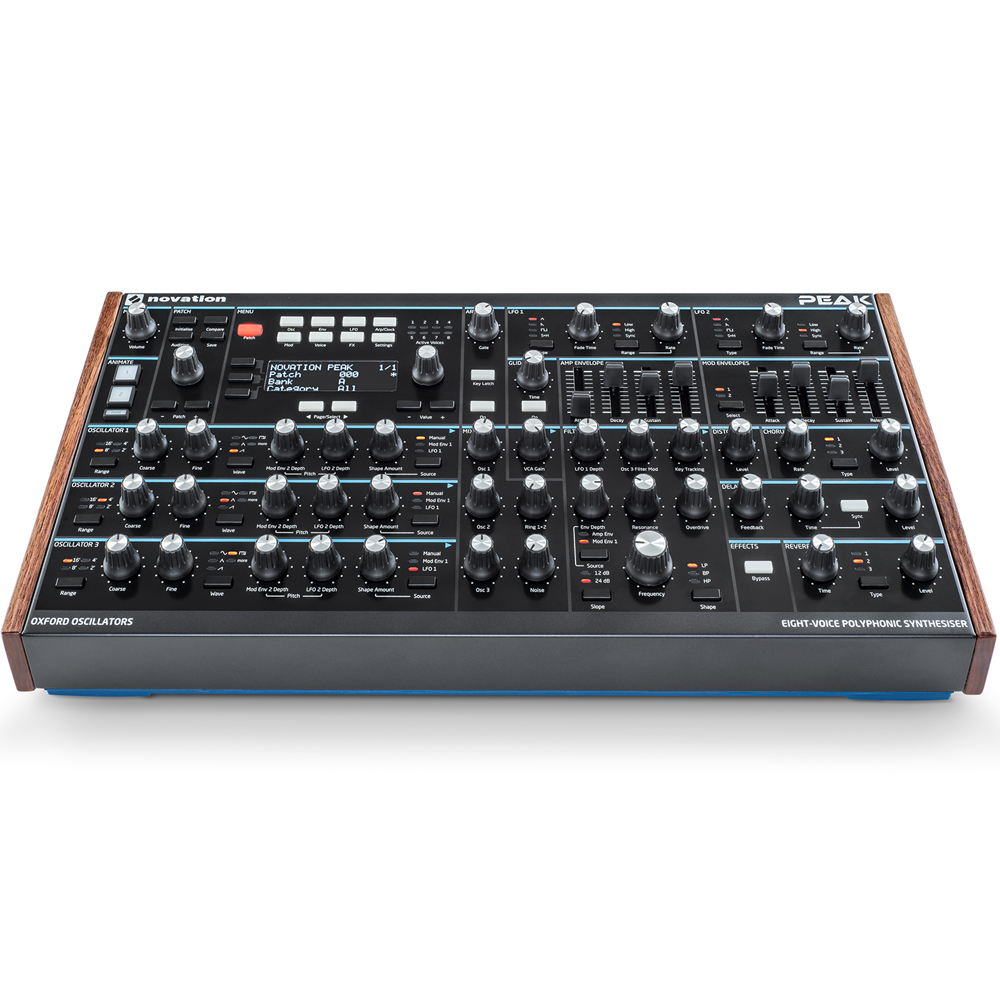

Novation Peak, 8 Voice Polyphonic Synthesiser

Novation Peak is an eight-voice desktop polyphonic synthesiser with three New Oxford Oscillators for each voice. The oscillators sound completely analogue by being high-quality NCOs (Numerically-Controlled Oscillators), but gain the flexibility of the digital domain with 17 digital wavetables. They can also become a linear FM source using either the analogue-sounding NCOs or digital wavetables – so are able to cross-modulate in a recursive loop.

The synth has a resonant multi-mode analogue filter for each voice, and three distortion points for each voice – pre-filter, post-filter and global – in an analogue signal chain. Peak is capable of receiving polyphonic aftertouch, which puts expression right at your fingertips. Reverb, delay and chorus effects are at one's disposal, and there is also an on-board arpeggiator.

The modulation system puts a 16-slot modulation matrix and 16 direct assignments in the main controls, cleverly arranged for intuitive patch design and sound editing. There are three ADSR envelopes and two LFOs for each voice, and more elaborate movements and secondary ‘via’ assignments are made just a few menu button presses away. In addition, two animate buttons give live performers instant one-touch transformation of patches.

Update 2.0 April 2022

Stereo
New spread modes, panning per voice, and panning in the mod matrix give additional control and allows for sound design in the stereo field. Now you can create bigger, wider, and more intricately textured soundscapes.

Modulation and unpredictability
Create deeper and more experimental sounds with new mod destinations, noise as a mod source, and additional LFO 3 and 4 parameters. Animate Envelopes and
Arpeggiator Chance open more creative performance possibilities.

Effects
New effects, including Chorus Modes, Flanger, and Phlanger add new tonalities. Additional effects modulation destinations open up more experimental sound design. A new Lo-Fi delay mode enables a more vintage style sound.

Bug Fixes
The firmware update v2.0 includes a number of bug fixes. The full details can be found in the release notes.

Innovative New Oxford Oscillators using two waveform generating techniques: NCOs (Numerically-Controlled Oscillators) and 17 digital wavetables
Pre-filter and post-filter distortion per voice, plus global distortion.
Polyphonic aftertouch and linear FM. High-quality reverb, delay and chorus effects, and onboard arpeggiator
Extensive modulation system, with 16-slot modulation matrix and 16 direct assignments controlled on the front panel.
Three ADSR envelopes and two LFOs per voice, plus animate button
CV modulation input for integration with modular systems
Compact desktop module design with optional die-cast aluminium stand for positioning (not included)

Dimensions (W x D x H)	464 x 233 x 70.5 mm
Weight	3.877 kg
In the box	Peak synthesiser USB cable Power supply

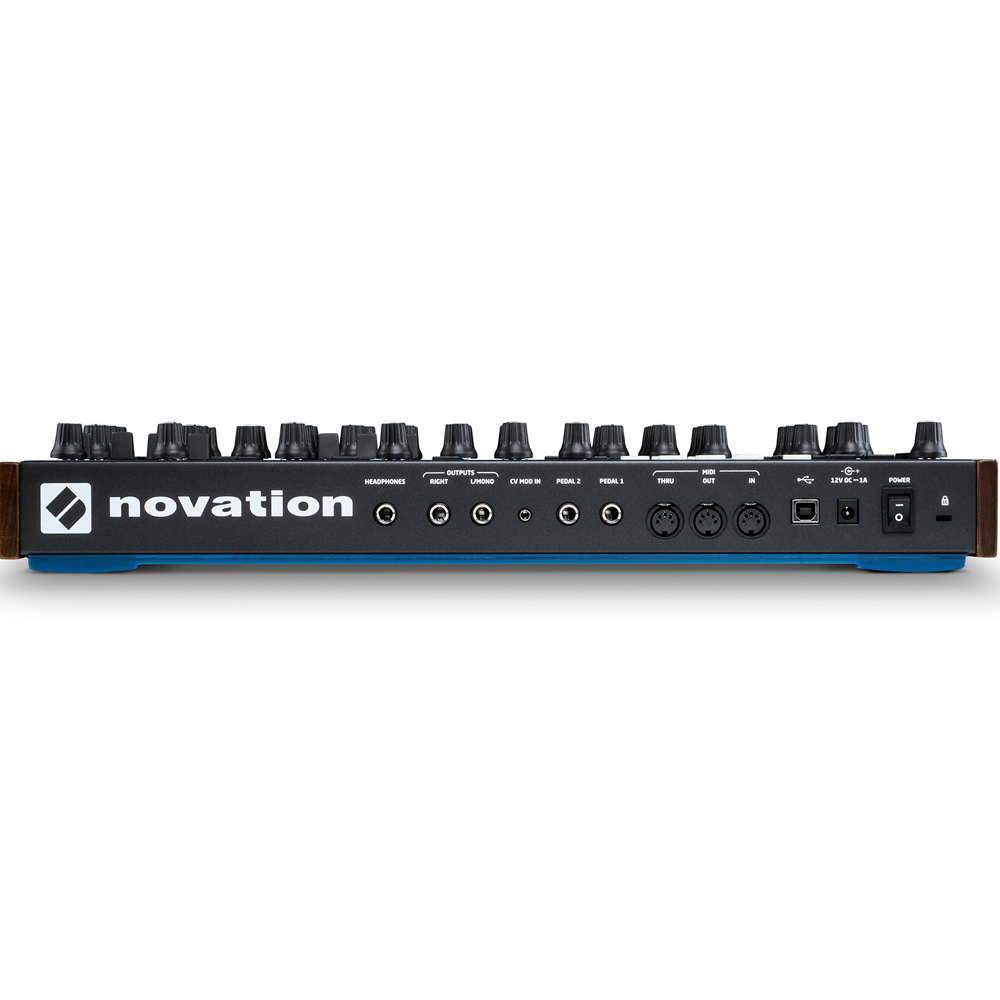

Hardware features	42 Control knobs 8 35mm Sliders 1 Volume knob 2 Data encoders Rubberised knob caps with spun metal discs 30 Function buttons (not lit) 16 Function buttons (lit) 2 Animate buttons plus hold button 90 Indicator LEDs OLED display Kensington Security Slot Power switch Power supply connector USB socket for system / MIDI comms only (no bus-power) MIDI In / Out / Thru 2 1/4" jack socket for continuous or switched pedals 3.5mm jack socket for CV in 1/4" jack sockets for left and right outputs 1/4" jack socket for headphone output Metal chassis with American walnut wooden end cheeks Metal magnetic inset end pieces
Synth engine	8 note polyphony (dependent on voices used per note) Mono-Timbral 5 Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2
Per voice	3 oscillators 1 noise generator 1 ring modulator 2 LFOs 1 Amp envelope and 2 mod envelopes 1 Filter
Waveforms include	Sine, tri, sawtooth, square / pulse plus 17 wavetables of 5 waveforms per row
Filter	1x State variable OTA filter per voice 12/24dB slope Low-pass / band-pass / high-pass Pre-filter overdrive Post-filter distortion
Modulation	16 modulation slots per patch Each slot has 2 sources to 1 destination
Mod sources	Direct (depth) Modulation wheel Aftertouch (polyphonic and channel AT) Expression pedal 1 Expression pedal 2 Keyboard velocity LFO1 positive LFO1 bi-polar LFO2 positive LFO2 bi-polar Amp envelope Mod envelope 1 Mod envelope 2 Animate 1 Animate 2 CV mod input bi-polar
Mod destinations (37)	Oscillator 1-3 frequency, v-sync level, shape amount and level Noise source level Ring modulator output level Overal synth output level Filter drive, distortion, cut-off frequency and resonance LFO 1 and 2 frequency Amp env / mod env 1 / mod env 2 attack, decay and release FM Osc 1 -> osc 2, osc 2 -> osc 3, osc 3 -> osc 1 and noise -> osc 1 Osc 3 -> filter cutoff frequency Noise -> filter cutoff frequency
Effects	Analogue distortion Chorus - 3 types Delay with 16 types of delay sync, LP and HP damping, slew and stereo Reverb - 3 types
Misc	Arpeggiator w/ key latch – 33 patterns Patch storage - up to 512 on hardware (ships with 256 factory patches) Glide All knobs (excl. volume), sliders and most buttons transmit and receive MIDI cc commands for external control and mapping
Software compatibility	Ableton Live Lite is included Peak is a USB-MIDI class compliant device
Power requirements	Maximum power consumption 12V DC 1A
