Elektron Analog Heat MKII, Stereo Analogue Sound Processor

 Elektron Analog Heat MKII, Stereo Analogue Sound ProcessorElektron Analog Heat MKII, Stereo Analogue Sound Processor

Condition  Brand New
Warranty  3 Year Warranty
Delivery  Free Delivery

  • Works as a 2in / 2out soundcard
  • 8 stereo analog distortion circuits
  • 7 filter types
  • Ableton Live Lite DAW software included
  • MIDI in/out/through with DIN sync
£599.00 £829.00
Earn 599 Loyalty Points.
+
AVAILABILITY:
In stock, immediate despatch

In stock, immediate despatch

product timer
Order soon for delivery
on using our express service
Finance this product
Finance
Elektron
payment for product

Condition  Brand New
Warranty  3 Year Warranty
Delivery  Free Delivery

  • Works as a 2in / 2out soundcard
  • 8 stereo analog distortion circuits
  • 7 filter types
  • Ableton Live Lite DAW software included
  • MIDI in/out/through with DIN sync

Product Details

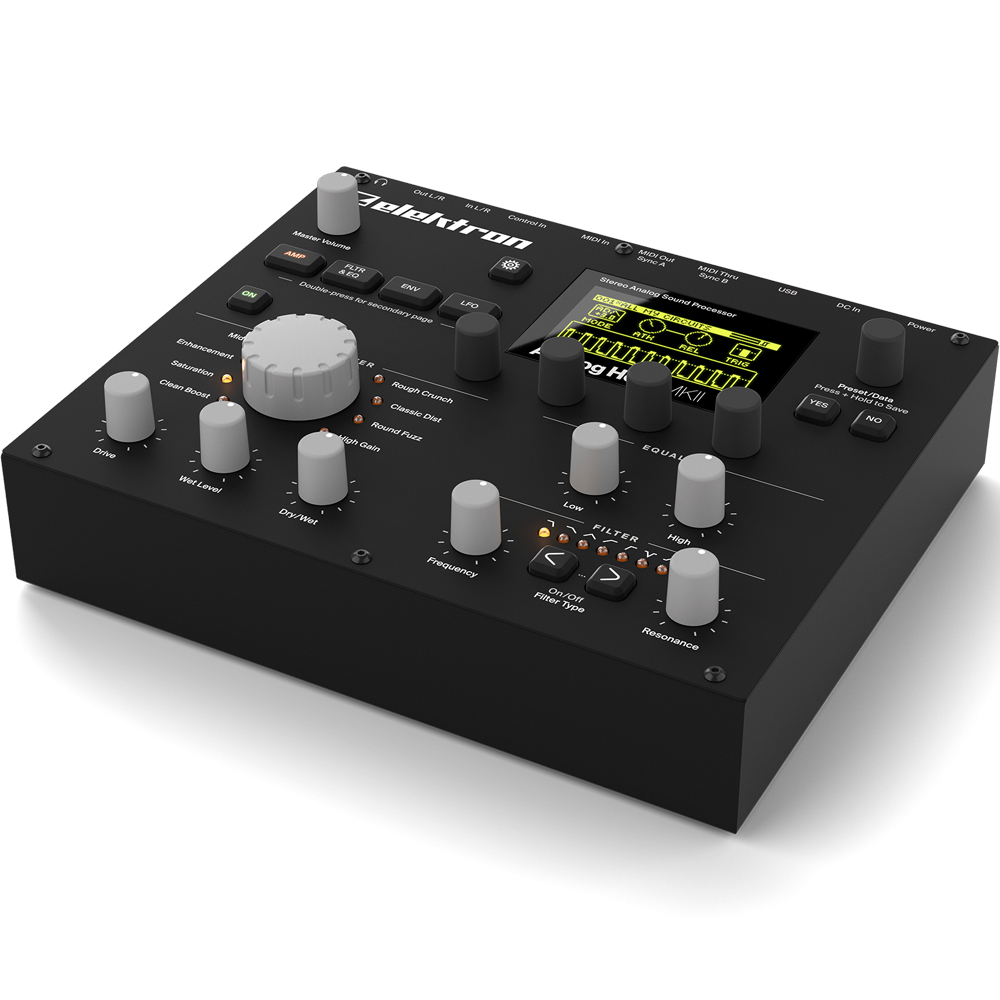

Product: Elektron Analog Heat MKII, Stereo Analogue Sound Processor

SKU: DDJ2921-1

Condition  Brand New
Warranty  3 Year Warranty
Delivery  Free Delivery

Audio Enhancer. Audio Destroyer.

“It's probably the most underrated tool out there right now.” Hank Shocklee — of The Bomb Squad & Public Enemy fame — on the sound shaping capabilities of the Elektron Analog Heat MK2.

Sound better
Take a sound, any sound. Send it through the Analog Heat MKII, try out the eight different stereo analog distortion circuits, add stereo analog filtering and EQ, and hear beautiful things unfold. New life for your existing gear.

All analog, all yours
The eight stereo analog circuits are designed to quickly access varied and powerful sound shaping. Each circuit has a distinctive way of processing sound. Clean boost, tape-like saturation, tube amp-like enhancement, overdrive, crunch, distortion, harmonic fuzz or high gain? You’ll find your favorite flavor with ease.

Sound card operation
One of the most prominent Analog Heat MKII features: it can function as a 2 in/2 out sound card, even while processing DAW audio. Perfect for the traveling musician. Create as you go and make stellar, high quality recordings wherever you may roam.

  • Works as a 2in / 2out soundcard
  • 8 stereo analog distortion circuits
  • 7 filter types
  • Overbridge enabled
  • MIDI in/out/through with DIN sync out
Sound processing 8 × Stereo analog distortion circuits
1 × Stereo analog multi-mode filter (7 filter types)
1 × 2 band adaptable stereo analog EQ
1 × Assignable envelope generator/envelope follower
1 × Assignable LFO
Storage 128 user preset slots

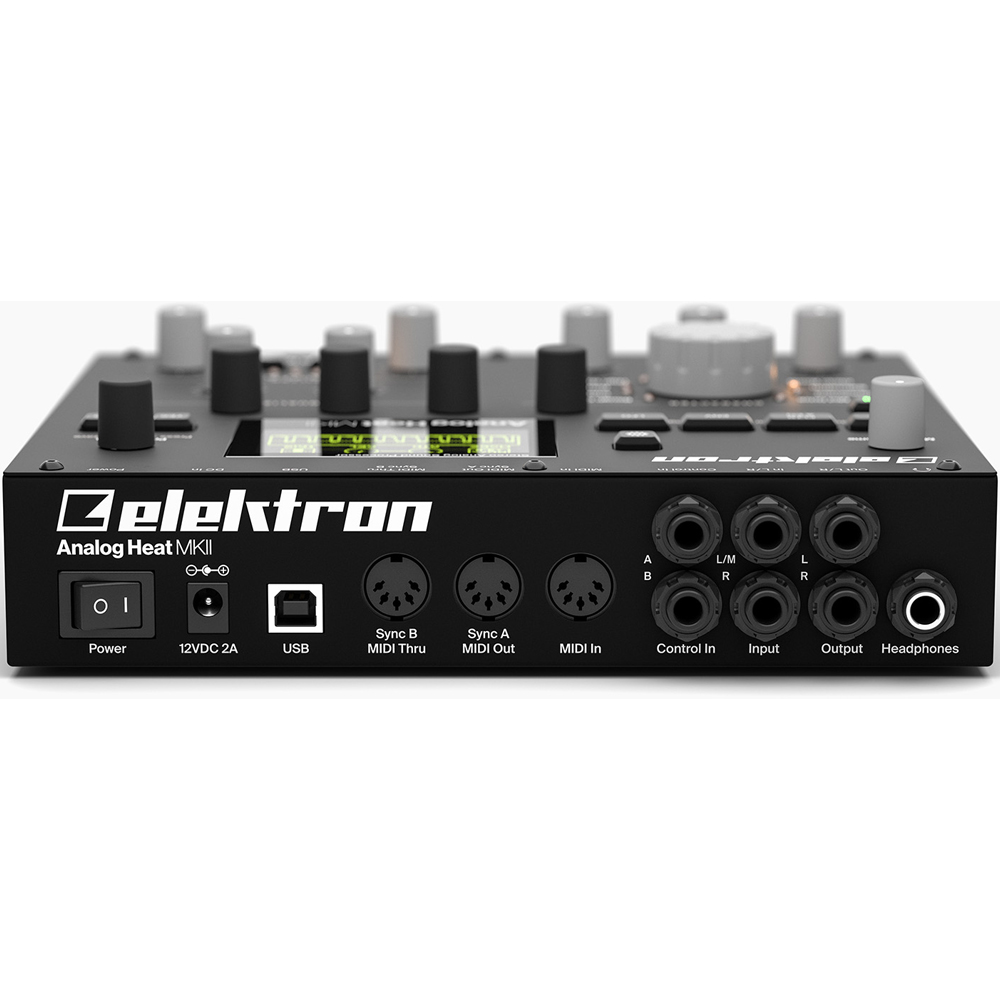

Hardware 128×64 pixel OLED screen
MIDI In/Out/Thru with DIN Sync out
2 × 1/4″ balanced audio out jacks
2 × 1/4″ balanced audio in jacks
1 × 1/4″ stereo headphones jack
2 × 1/4″ CV/Expression pedal input jacks
48 kHz, 24-bit D/A and A/D converters
Flash-EEPROM upgradable OS
Hi-speed USB 2.0 port
Audio outputs Headphones out level: +19 dBu peak
Headphones output impedance: 36 Ω
Impedance balanced main outputs level: +19 dBu peak
Main outputs impedance: 440 Ω unbalanced
Audio inputs Balanced audio input level: +19 dBu peak
Audio input impedance: 39 kΩ
Control inputs Input level: -5 V – +5 V
Accepts CV, Expression pedals, Foot switches
Casing Steel
Dimensions (W x D x H) 215 x 184 x 63mm
Weight 1.5kg
Misc Overbridge support
3 year Elektron warranty
Included in the box Power Supply PSU-3b
Elektron USB cable
