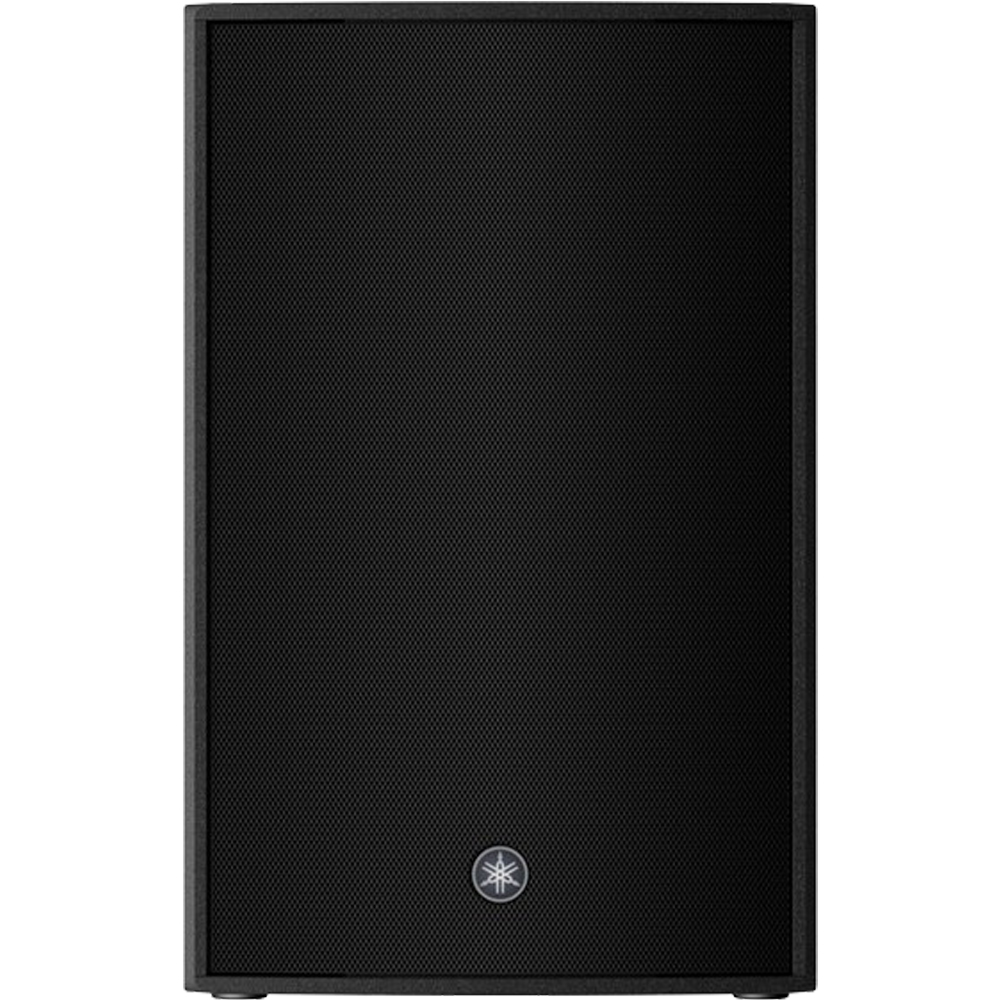

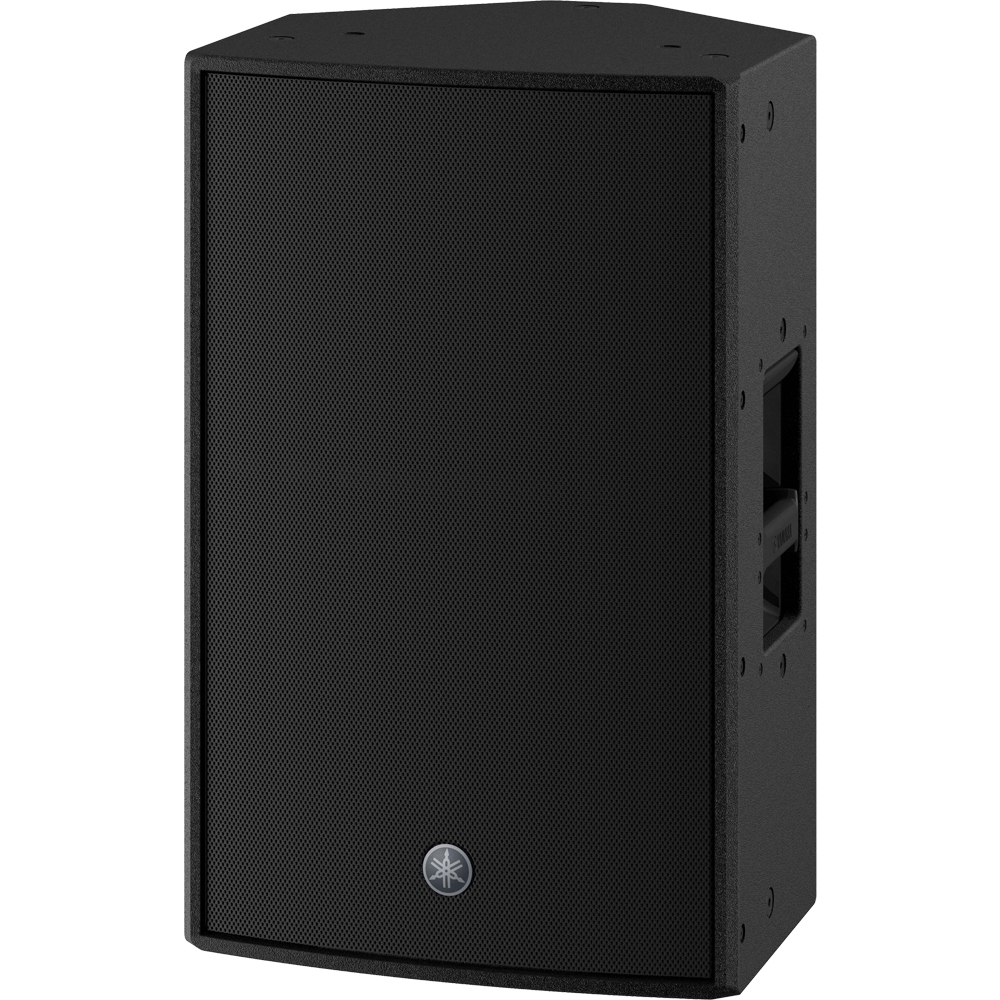

Yamaha DZR12, 950 Watt RMS Active PA Speaker (Pair)

Yamaha DZR12, 12" Active PA Speaker with DSP, 2000 Watts Peak (950 Watts RMS), Pair

The DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

The culmination of all Yamaha’s accrued sound reinforcement, acoustics, and signal processing technology expertise - particularly with the introduction of our Dante-enabled models - DZR represents Yamaha’s first fully-integrated, smart/editable speaker range of professional, powered loudspeakers.

96kHz DSP processors help focus the considerable power output of the DZR into truly high-resolution sound with super-low latency. Yamaha’s newly developed Advanced FIR-X tuning improves significantly on our proprietary FIR-X tuning technology which utilizes linear phase FIR filters for the crossover network and correct EQ. Using FIR filters, we are able to realize very smooth frequency response for stunning clarity and sound imaging without phase distortion. Accurate EQ filtering is also provided for pinpoint adjustment to realize ideal clarity and best-in-class SPL without signal degradation.

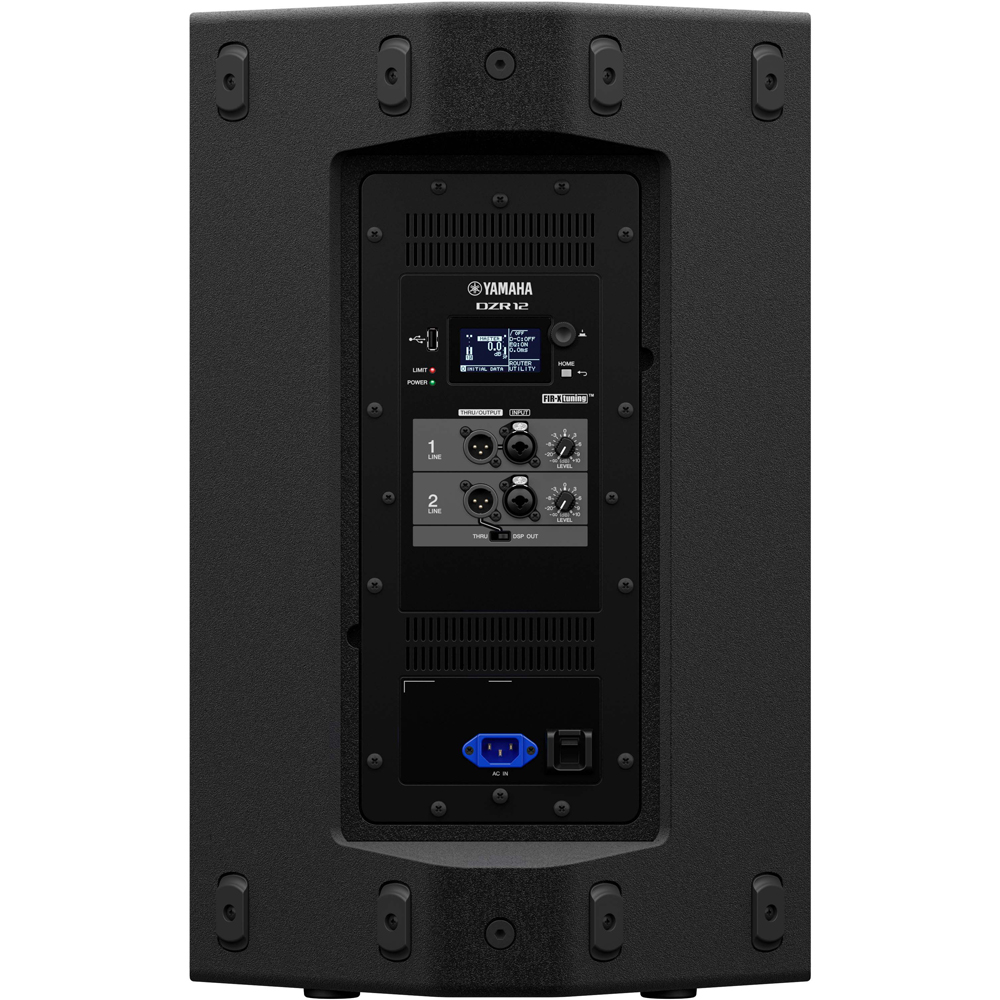

An onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and make precise adjustments to PEQ, delay, and routing. Store up to 8 user presets to save your own parameter adjustments, or use the optimized dedicated factory presets for using DZR and DXS XLF Series in combination. Users can easily transfer saved settings to a USB flash drive.

D-CONTOUR is an intelligent multi-band compressor that ensures your DZR’s sound stays consistent and clear no matter how hard you drive them. By constantly monitoring the output of multiple frequency bands and applying the optimum EQ adjustments for each, even the highest output levels maintain outstanding clarity and musicality.

A perfect complement to the DZR’s versatile cabinet design, D-CONTOUR provides two different settings, FOH/MAIN or MONITOR mode, offering more detailed tuning of your sound relative to your PA’s configuration. FOH/MAIN mode boosts the lower frequencies to compensate for low end that is typically missing when speakers are used in suspended applications or mounted on a speaker stand. MONITOR mode is optimized for floor monitoring application by taming down problematic low frequencies that can be enhanced by floor reflection, and smoothinga wide range of frequencies to deliver the clarity professionals demand from their stage monitors. Both of these presets were perfected by performing countless listening tests with skilled sound engineers to ensure consistent sound with low distortion at any output level.

The all new, highly efficient Class-D amplification module produces best-in-class 2000W of power and an impressive 139dB SPL. A universal switching mode power supply with PFC to maximizes power output while ensuring stable and worry-free operation.

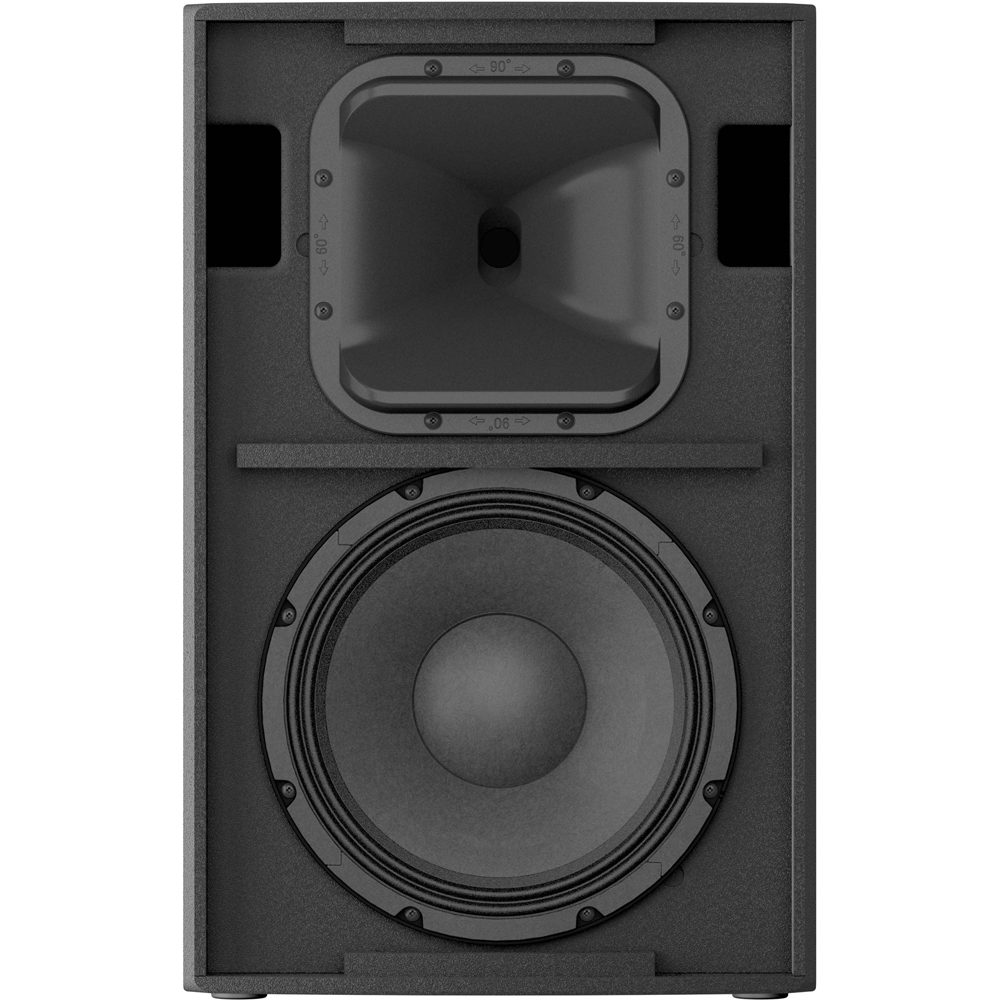

• 2-way powered loudspeaker with a 2" HF and a 12" LF
• Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s sound engineering demands
• High power 2000W Class-D amplifier module & 950W RMS
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits

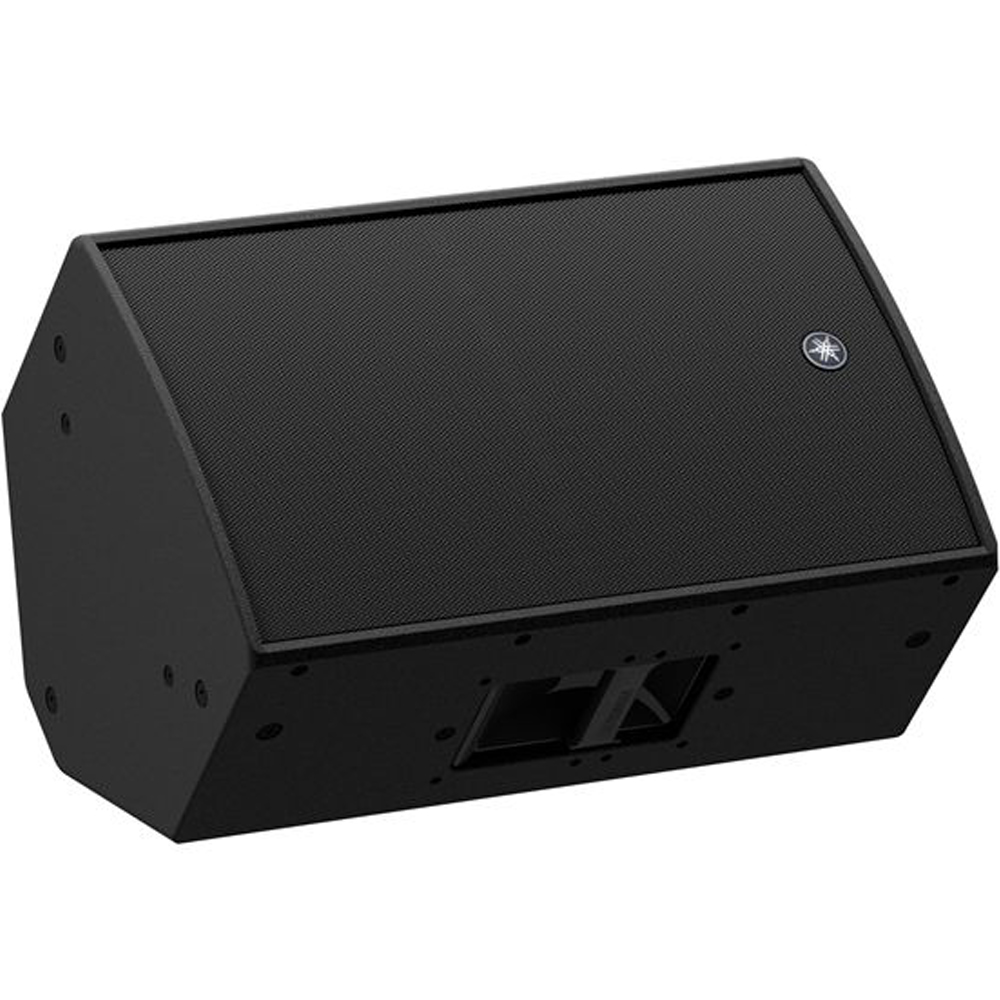

• Floor monitoring setting enables mirroring configuration
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR12)
• Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement
• Durable black or white finish
