Yamaha DM3 22-Channel Digital Mixer with 16-In/16-Out DANTE Interface

Yamaha 16-Channel Compact Digital Mixing Console with DANTE

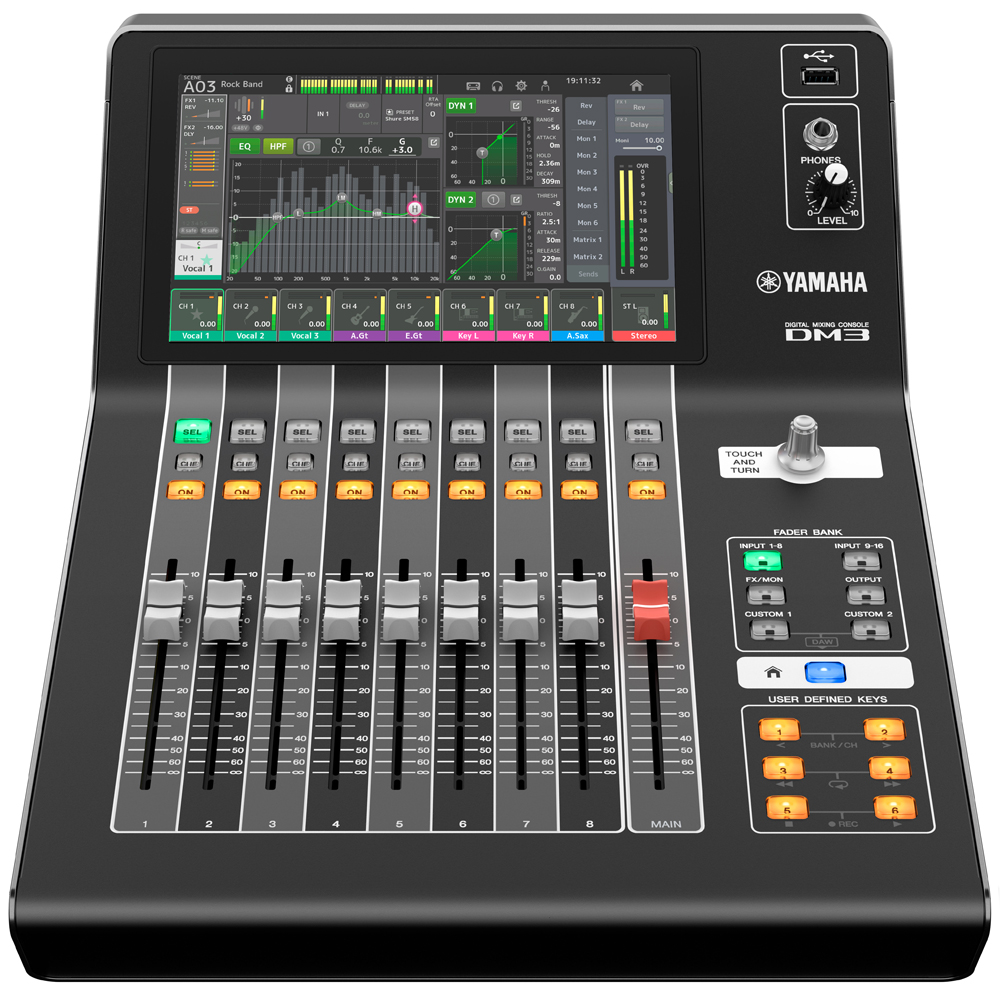

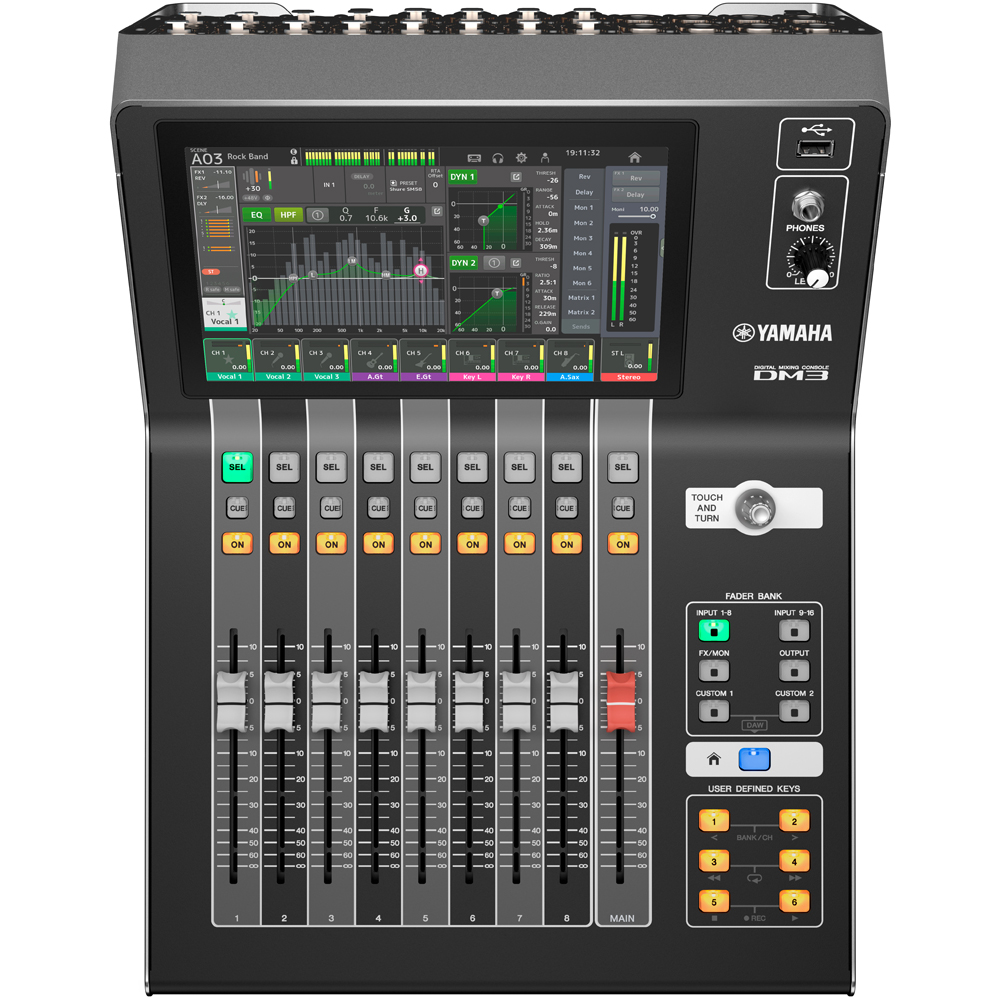

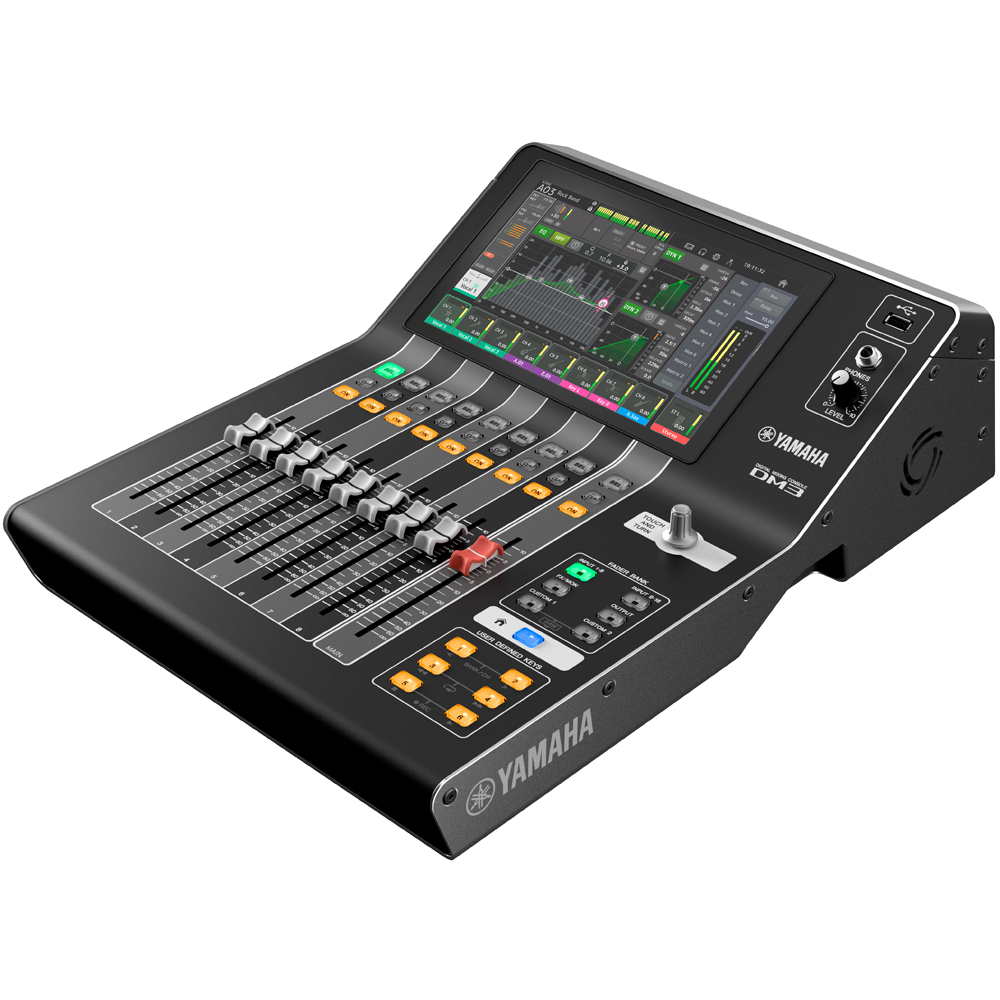

Yamaha DM3 Series allow engineers to capture the on-stage sound accurately, without coloration, and then add creative touch as required. It exemplifies a “less is more” design philosophy, utilizing a 9” touchscreen and a single Touch & Turn knob for managing most of the console’s operations. DM3 mixing consoles give you the power and flexibility to DO MORE than ever imagined with a digital console this compact.

There are two DM3 mixers in the series - the DM3, which features Dante audio networking for quick and flexible connection to a wide range of compatible audio devices, and the DM3 Standard without Dante. Other than Dante provision, the features on both models are identical, featuring 16 mono, one stereo and two FX Return input mixing channels, plus six Mix Send, two FX Send, one stereo, and two matrix output mixing channels.

Offering superior audio, low latency and two high quality processors featuring 18 types of effects, a simple, intuitive user interface is centred around a large, 9" screen with multi-touch control. Small yet thoughtful features, like being able to choose from multiple languages for channel names (using the DM3 Editor or DM3 StageMix applications) displayed on the user's choice of light or dark background, make the DM3 series easy to use in any space, lighting conditions and by users of different nationalities.

Despite its compact size, the DM3 series means users can do more by being suitable for many different applications. With custom fader banks and MonitorMix support for personal monitor mixing, it has a wide variety of live sound applications, anything from simple presentations and conferences to live bands and multi-performer events. The DM3 is also ideal as a sub-mixer for a Dante-compatible main console.

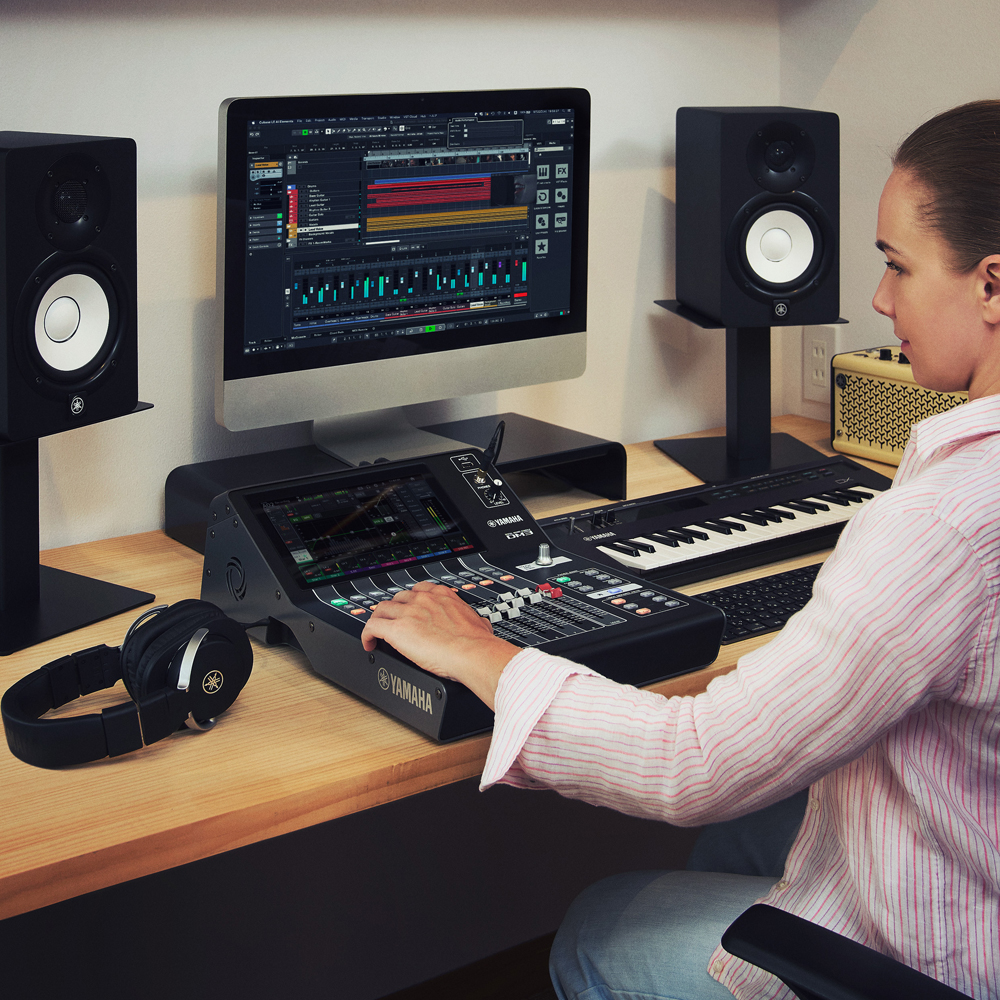

The DM3 series is also a supremely portable, full-specification music production tool, covering all the bases for recording and editing needs, thanks to an included 18in/18out USB audio interface and DAW Remote functionality.

Multitrack recording via USB to Host is supported, while simple two track recording is also possible using a USB memory stick and a separate USB connector on the front panel. The Dante-capable DM3 adds further multitrack recording capability using Dante Virtual Soundcard. Meanwhile, the DAW Remote function means a range of DAWs can be controlled from the console. Recordings can then be edited with the bundled Cubase Al software or the DAW of your choice.

DM3 consoles include all the features needed for high quality streaming. With stereo and matrices, the audio routing gives users exceptional freedom and allows the creation of separate mixes for on-site and streaming sound.

Another key market for the DM3 series is in fixed installations. Both consoles support OSC and MIDI (via USB) general purpose external control protocols and User Account, User Defined Key and Custom Fader Bank can be used to configure settings for users. The consoles are compatible with Yamaha's ProVisionaire software suite, which allows the creation of bespoke control panels, perfectly tailored to the needs of remote control and installation monitoring. Meanwhile, the optional RK-DM3 can be used to mount either unit in 13U of a standard 19" equipment rack.

The DM3 series is complemented by further powerful software applications, which help make them even more flexible. These include DM3 Editor, a standalone Windows or Mac application for both online operation and offline setup and editing, and DM3 StageMix, an iPad app that enables remote control of the DM3 Series via a simple, intuitive interface, allowing an engineer to control mix parameters from a performer's position on the stage. Meanwhile, the MonitorMix application for iOS and Android devices puts control of each performer's monitor mix in their hand.

• 16 Mono + 1 Stereo +2 FX Channels
• Bus: 6 Mix + 2 FX + 2 Matrix
• 9 Motor Faders, 1 Touch & Turn

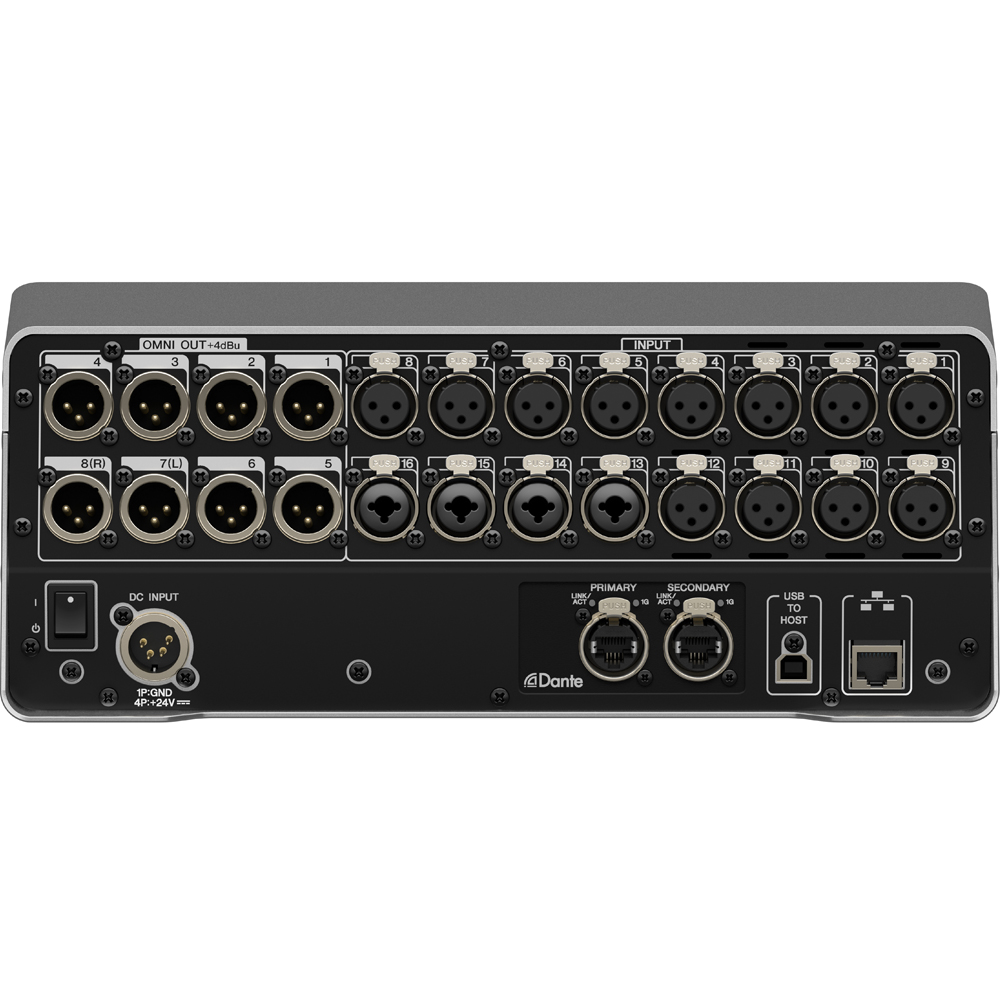

• Analogue In 16 Mic/Line
• Analogue Out 8 (XLR)
• 18x18 Audio Interface via USB
• 2 FX & GEQ on Mix/Stereo Bus
• 16-In/16-Out Dante Interface
• DAW remote (HUI)
• Cubase AI & VST Rack (Elements)
