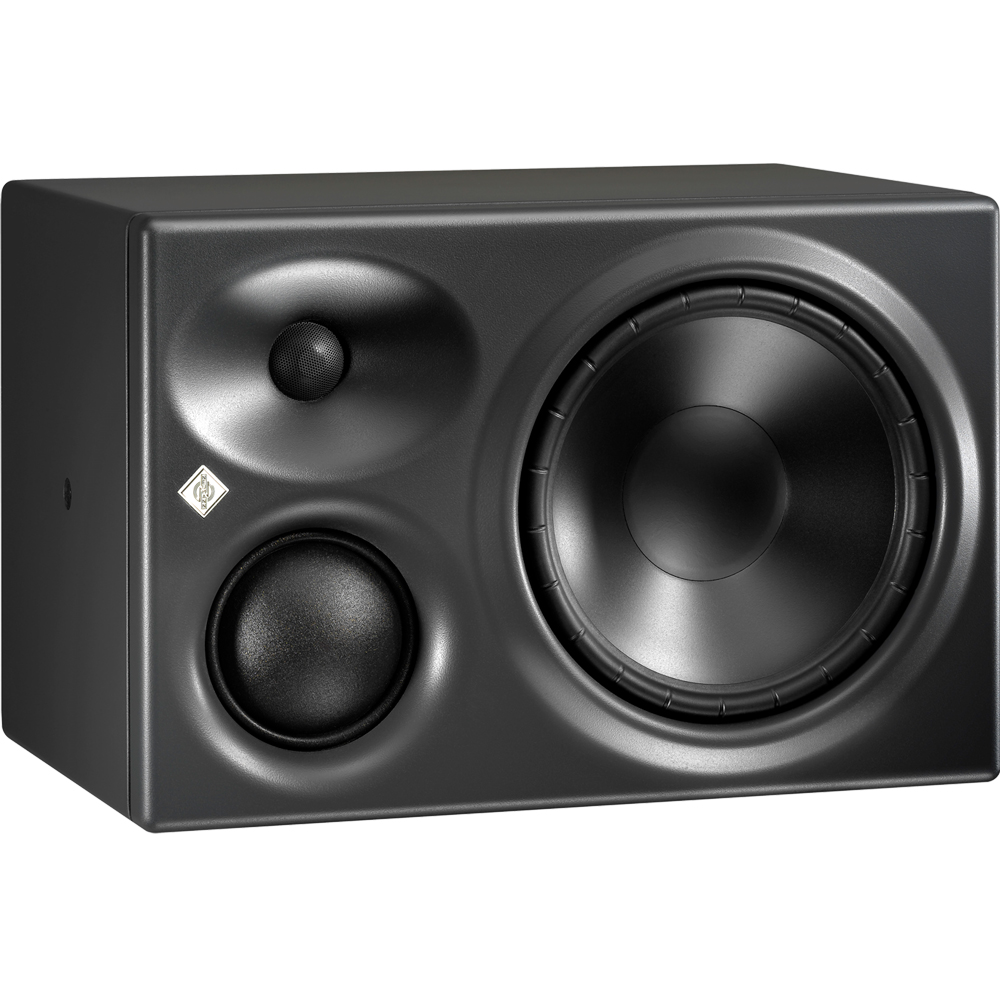

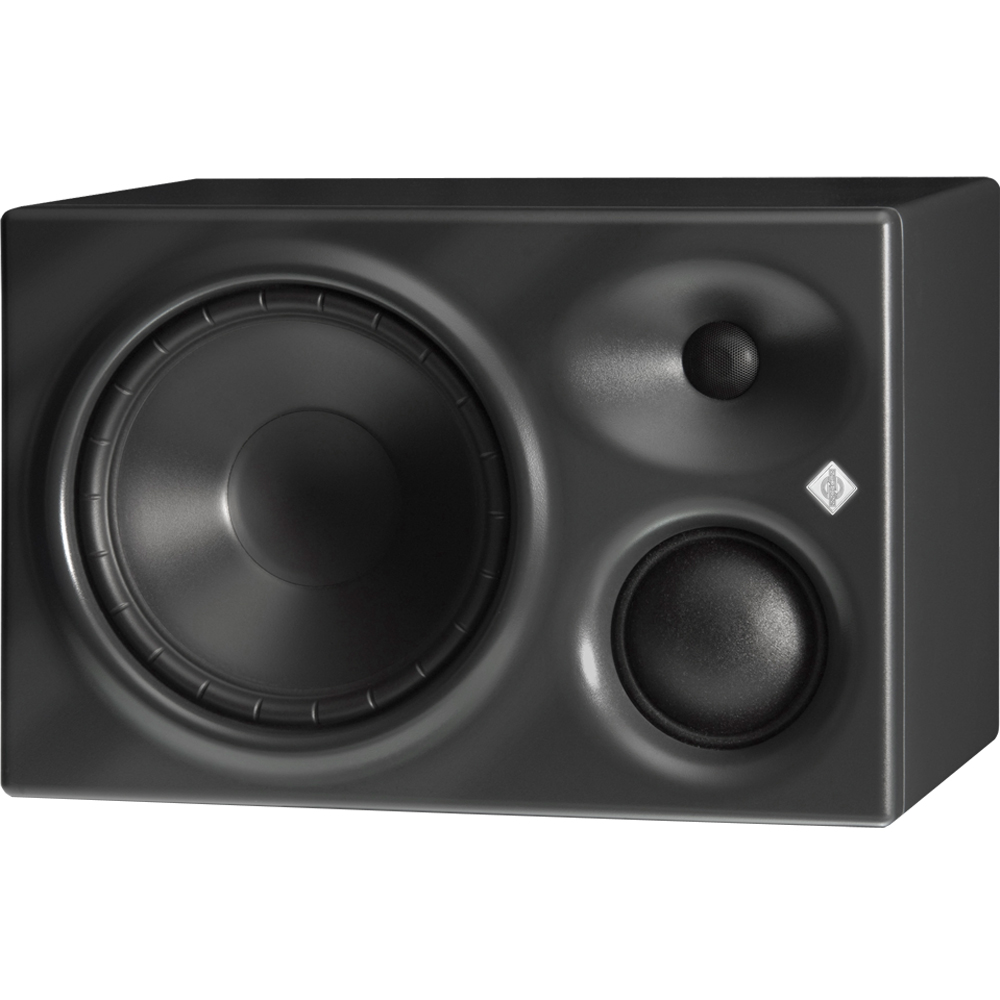

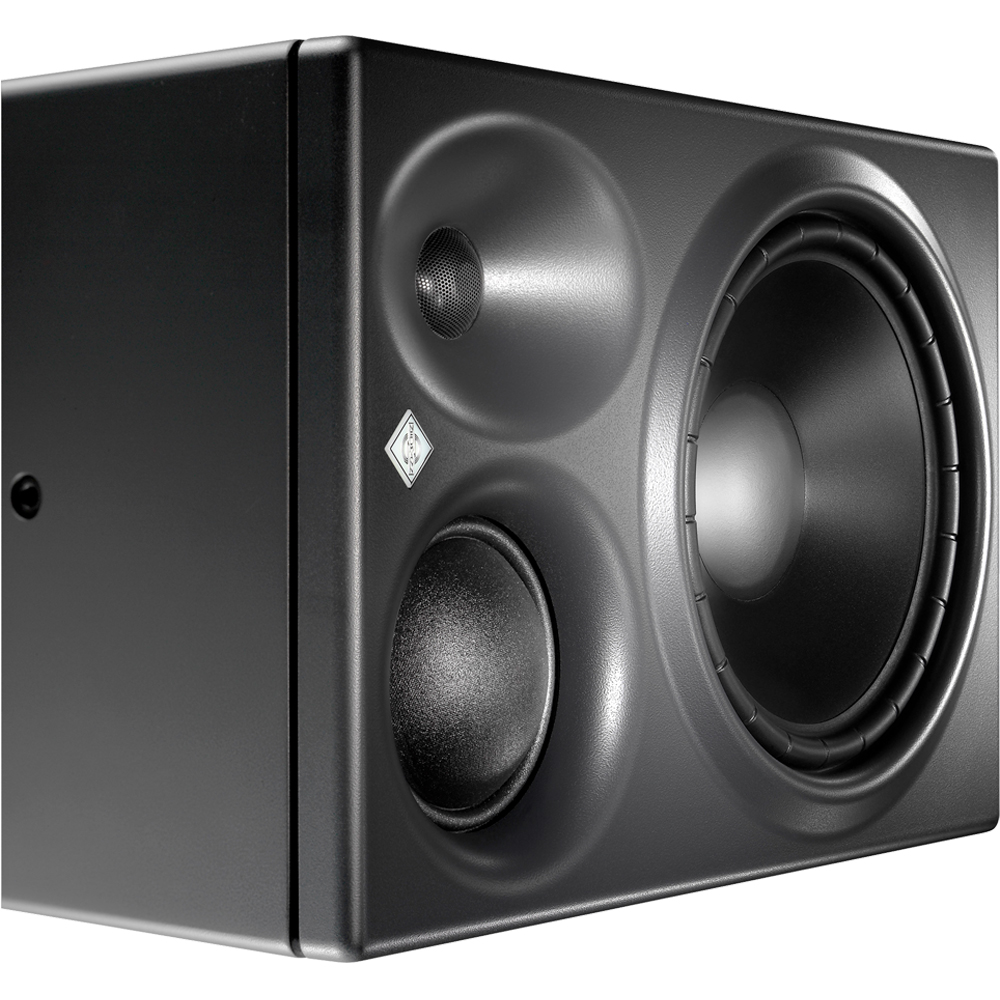

Neumann KH310A Active 3-Way Nearfield Studio Monitors (Pair)

Zoom

Watch the Video

Condition Brand New
Warranty 2 Year Warranty
Delivery Free Delivery

Wide horizontal and narrow vertical dispersion
Dedicated driver reproduces important midrange frequencies
High power magnet reduces harmonic and intermodulation distortion
Compact sealed three-way cabinet design (magnetically shielded)
Independent thermo limiters for woofer, midrange dome and tweeter

More details

£3,649.00 ~~£3,998.00~~

Earn 3,649 Loyalty Points.

–+

AVAILABILITY:

Special order, 3-14 Days Despatch

Order soon for delivery
on using our express service

This package includes the following items

	Neumann KH310A Active 3-Way Nearfield Studio Monitor (Left)
	Neumann KH310A Active 3-Way Nearfield Studio Monitor (Right)

Finance this product

Condition Brand New
Warranty 2 Year Warranty
Delivery Free Delivery

Wide horizontal and narrow vertical dispersion
Dedicated driver reproduces important midrange frequencies
High power magnet reduces harmonic and intermodulation distortion
Compact sealed three-way cabinet design (magnetically shielded)
Independent thermo limiters for woofer, midrange dome and tweeter

More details

Product Details

Product: Neumann KH310A Active 3-Way Nearfield Studio Monitors (Pair)

SKU: DDJ3276-2

Condition Brand New
Warranty 2 Year Warranty
Delivery Free Delivery

Description
Features
Specifications
Delivery & Returns
Customer Reviews

Neumann Studio Monitor - Pair

The Neumann KH 310 A three-way active tri-amplified monitor features a Mathematically Modeled Dispersion™ Waveguide (MMD™), flexible acoustical controls, various input options and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 310 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

The KH 310 is designed for use as a near-field monitor, as a front loudspeaker in mid-sized multi-channel systems, or as a rear loudspeaker in a larger multi-channel system. It can be used in project, music, broadcast centres, OB vans, and post production studios for tracking, mixing, and mastering.

Powerful alloy fabric dome
Low-distortion high-frequency reproduction
Wide horizontal and narrow vertical dispersion
Smoother off-axis response
More forgiving of diverse acoustical environments
Reduces reflections off the mixing console
New in-house simulated drivers
Latest modeling to minimize non-linear distortion
Fabric dome, neodymium magnet, midrange driver
Dedicated driver reproduces important midrange frequencies
Light weight dome has better transient response and less breakup modes
High power magnet reduces harmonic and intermodulation distortion
Long throw composite sandwich cone bass driver
Extremely Linear Force Factor™ (ELFF™) and ribbed surround
Damping of break-up modes and low distortion at high sound levels
Linear pistonic motor gives a very low harmonic distortion even at high excursions
Reduced radial break-up modes on the ribbed surround
Two-colour + dimmable Neumann logo
Compact sealed three-way cabinet design (magnetically shielded)
No standing wave resonances
Fastest bass transient response
Reduced intermodulation distortion in midrange
One-piece front panel with no discontinuities
Reduced diffraction and smoother frequency response
Powerful analog class AB amplifiers with large headroom
Improved transient response
Independent thermo limiters for woofer, midrange dome and tweeter
Production consistency due to individual hand-alignment in final test
Any KH 310 is “pair-matched” to any other KH 310
4-position bass, low-mid and treble acoustical controls
More control in diverse acoustical environments
Wide range input gain and output level controls
Easier interfacing with signal sources
Ground lift
Reduced noise in electrically noisy environments and over-comes ground loops
Universal switched-mode power supply (100 … 240 V)
One version works in any country and robust to poor quality mains supply

Acoustics	Free field frequency response 34 Hz - 21 kHz, ± 3 dB Pass band free field frequency response 36 Hz - 20 kHz, ± 2 dB Self-generated noise (with input gain set to 100 dB for 0 dBu) < 20 dB(A) at 10 cm Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m > 85 Hz Max. SPL in full space / calc. in half space at 3% THD at 1m 110.3 / 116.3 dB SPL (averaged between 100 Hz and 6 kHz) Bass capability: Max. SPL in half space at 3% THD at 1m 104.5 dB SPL (averaged between 50 Hz and 100 Hz) Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions 113 dB(C) SPL Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair) 100 dB(C) SPL (full range) 107 dB(C) SPL (with subwoofer) Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) 93 / 99 dB(C) SPL (full range) 94 / 100 dB(C) SPL (with subwoofer)
Electronics	Bass / Midrange / Treble Class AB amplifiers, cont. (peak) output power* 150 W (210 W) / 70 W (90 W) / 70 W (90 W) Controller design Analog, active Crossover frequencies 650 Hz / 2 kHz Crossover slope 24 dB/oct, 4th order Equalization - Bass 0, −2.5, −5, −7.5 dB Equalization - Low Mid 0, −1.5, −3, −4.5 dB Equalization - Treble +1, 0, −1, −2 dB Protection circuitry Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters Infrasonic filter - frequency; slope 15 Hz; 6 dB/oct Input XLR, analog electronically balanced Impedance, electrically balanced > 13k Ohms Input gain control (sensitivity) 0 dB to −15 dB Output level control 94, 100, 108, 114 dB SPL CMRR > 56 dB @ 100 - 15 kHz Max. input level +24 dBu Displays and indicators - power on Neumann logo “White” Displays and indicators - limit / clip Neumann logo “Red” Mains Power Supply, voltage; frequency 100-240 V~; 50/60 Hz Power consumption - idle 24 W Power consumption - full output 300 W
Mechanics	Cabinet surface finish, colour Painted wood and polyurethane, metallic anthracite (RAL 7021). Aluminum electronics panel, Black. Operating conditions +10° C to +40° C (+50° F to +104° F), <90% RH, non-condensing Transport/storage condition −25° C to +70° C (−13° F to 158° F), <90% RH, non-condensing Drivers Magnetically shielded Woofer 210 mm (8 1/4") Midrange 75 mm (3") Tweeter 25 mm (1") Mounting points 2 x M8 on side panels, depth from outside of cabinet 25 mm (1”). Rear panel screws for attaching LH 41 base plate. Rear panel bracket. Product dimensions (height x width x depth), mm (inches) 253 x 383 x 292 mm (10" x 15 1/8" x 11 1/2") Product weight 13.0 kg (28 lbs 11 oz) Included 1x KH 310 A 3x Main cables (European, UK and US version) 4x Self-adhesive feet 1x Operating manual 1x Supplement "Getting Started Quickly"
