ASM HydraSynth Deluxe, Digital Wave Morphing 73-Key Synthesizer

Zoom

Watch the Video

Condition Brand New
Warranty 1 Year Warranty
Delivery Free Delivery

16-voice polyphonic digital wave morphing synthesizer
Single/Multi Dual/Keysplit voicing options
POLYTOUCH™ Polyphonic Aftertouch, Note on/off velocity keyboard with 73 full-size keys
MPE (MIDI Polyphonic Expression) compatibility
Multi function ribbon controller (Modulation, Pitch bend, Theremin mode)

More details

£1,440.00 ~~£1,744.00~~

Earn 1,440 Loyalty Points.

–+

Notify me when this item is available

AVAILABILITY:

Estimated restock 15/03/2025

Order soon for delivery
on using our express service

Finance this product

Condition Brand New
Warranty 1 Year Warranty
Delivery Free Delivery

16-voice polyphonic digital wave morphing synthesizer
Single/Multi Dual/Keysplit voicing options
POLYTOUCH™ Polyphonic Aftertouch, Note on/off velocity keyboard with 73 full-size keys
MPE (MIDI Polyphonic Expression) compatibility
Multi function ribbon controller (Modulation, Pitch bend, Theremin mode)

More details

Product Details

Product: ASM HydraSynth Deluxe, Digital Wave Morphing 73-Key Synthesizer

SKU: DDJ4487

Condition Brand New
Warranty 1 Year Warranty
Delivery Free Delivery

Description
Features
Specifications
Delivery & Returns
Customer Reviews

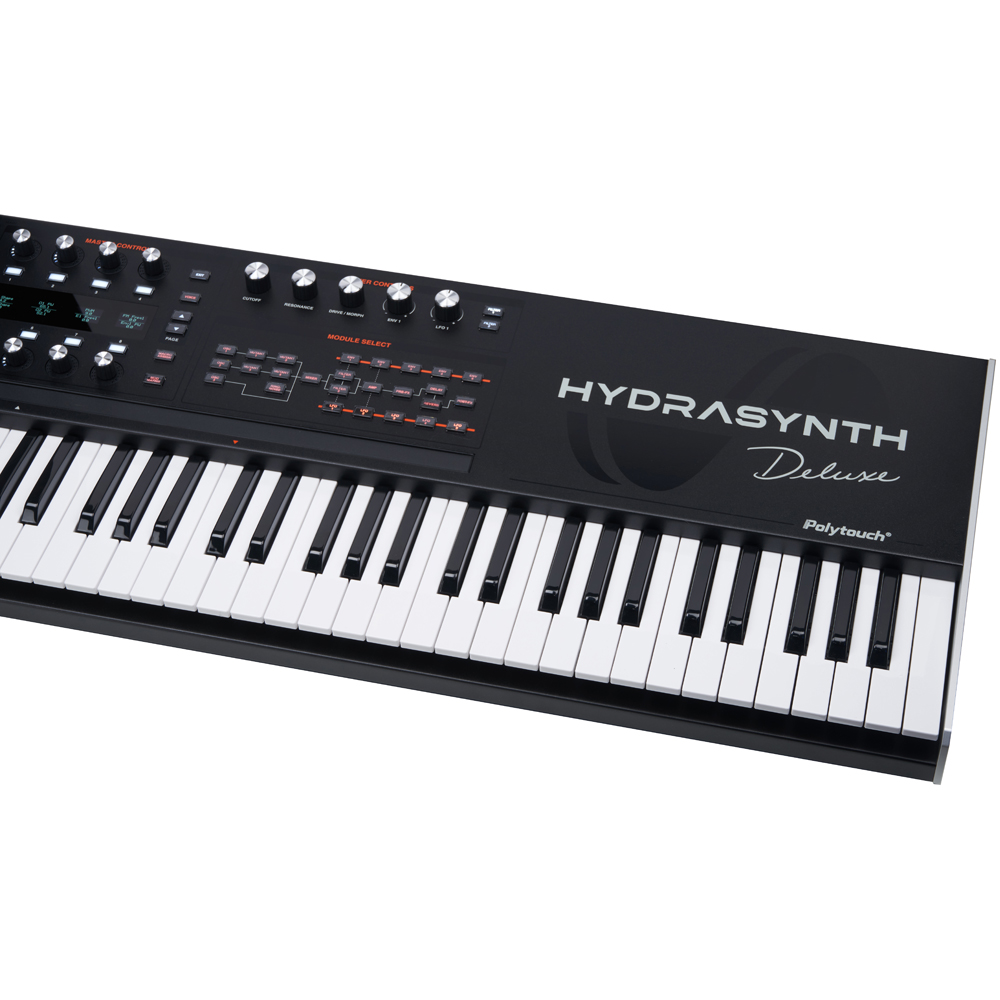

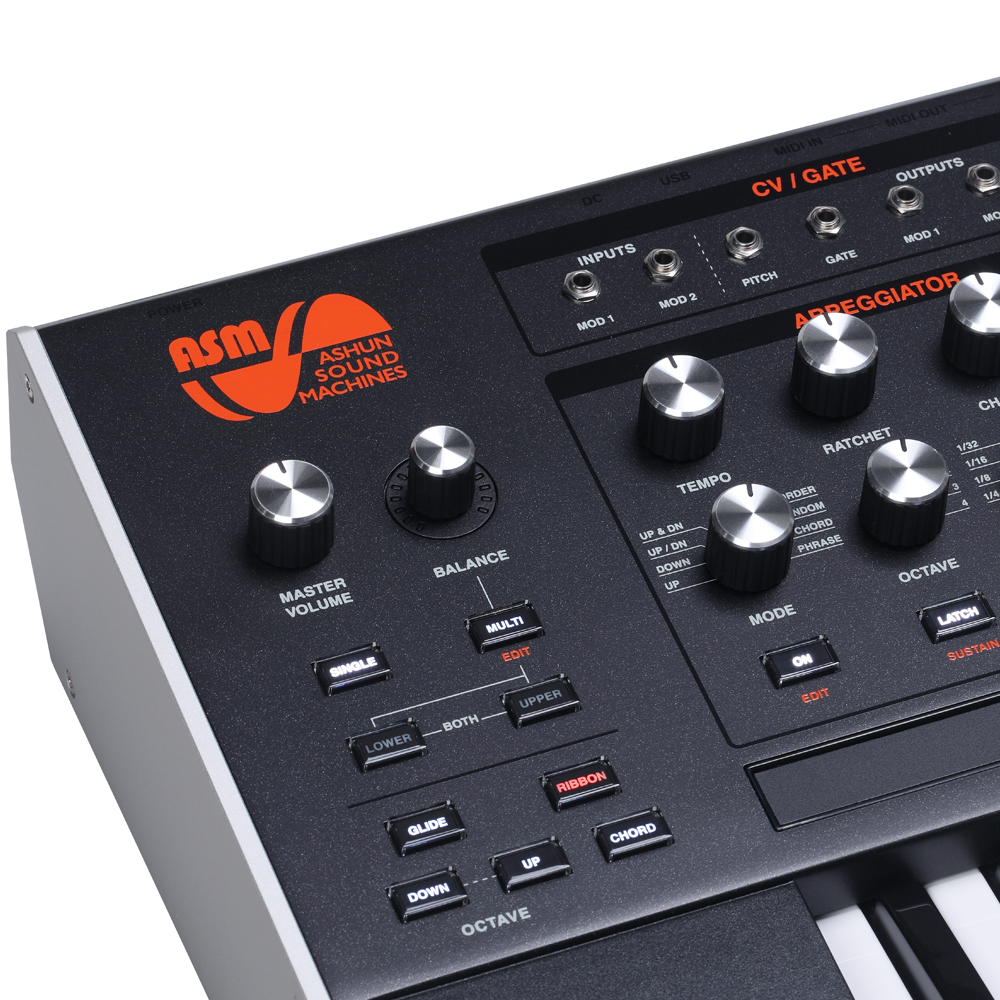

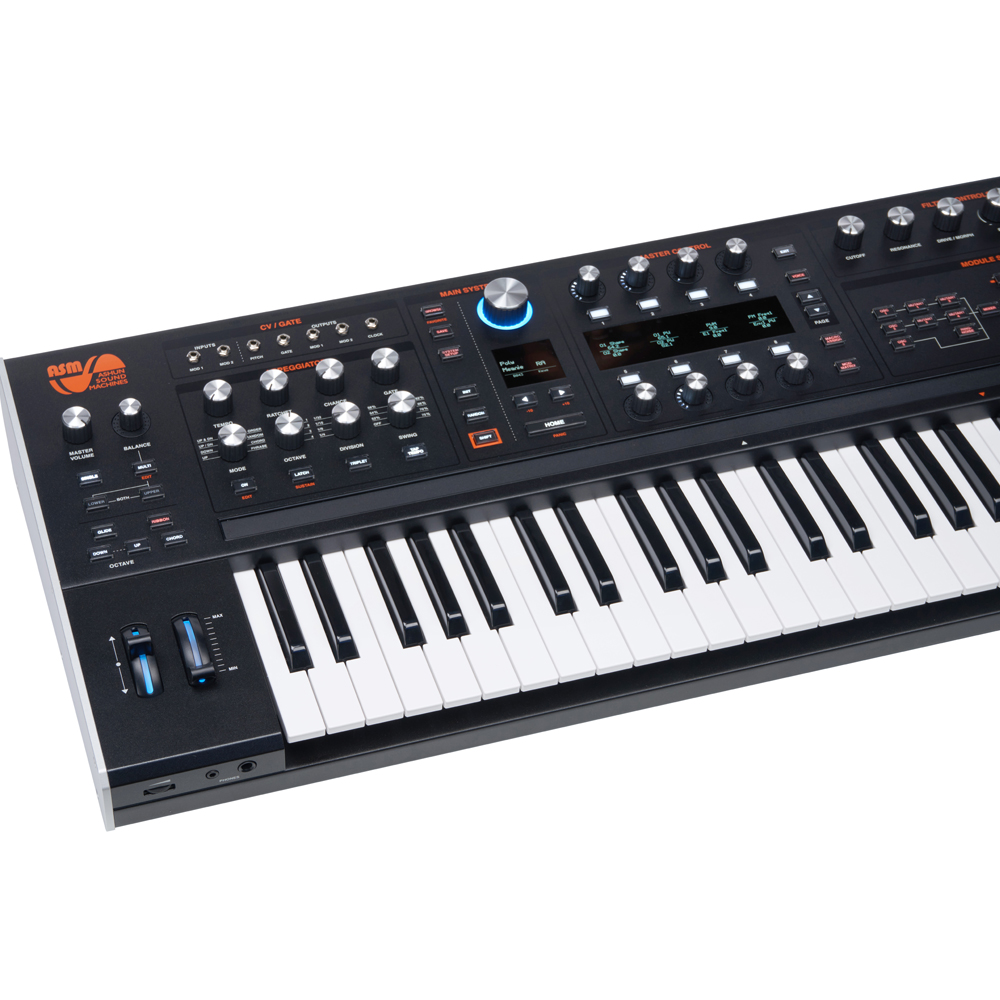

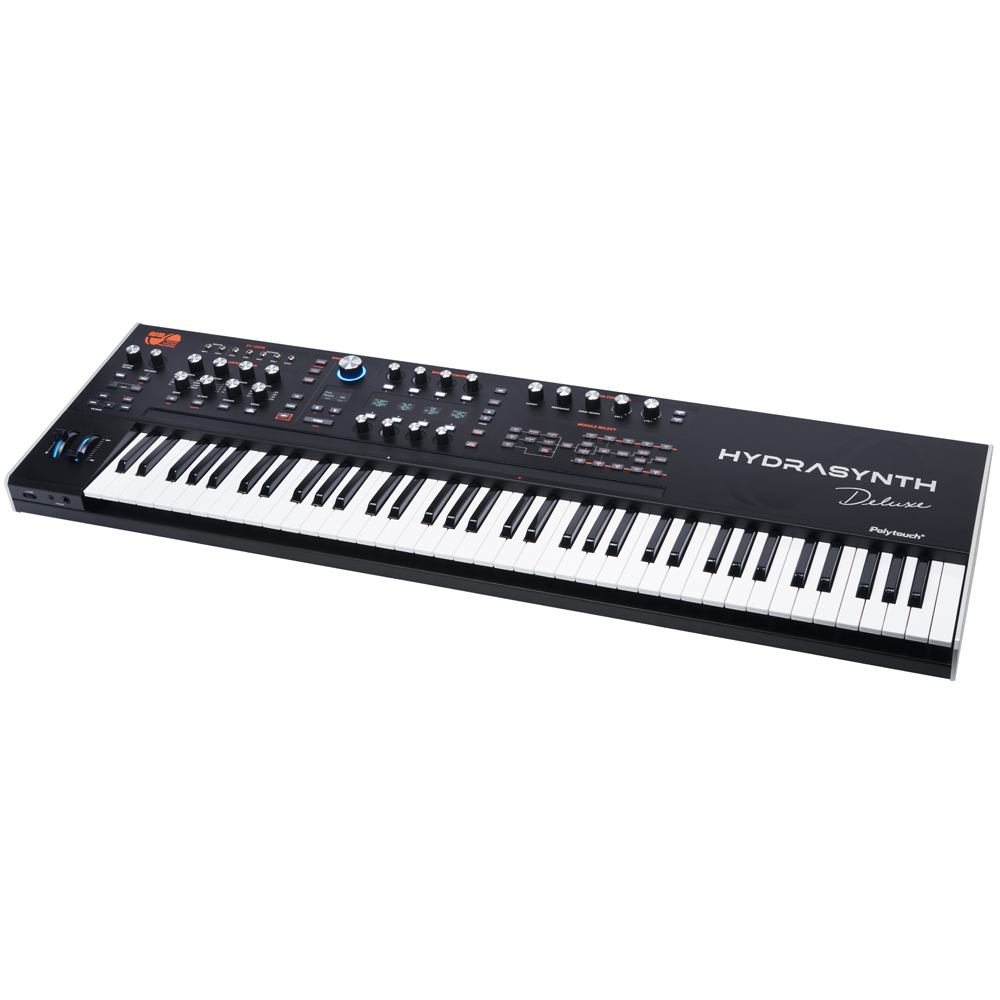

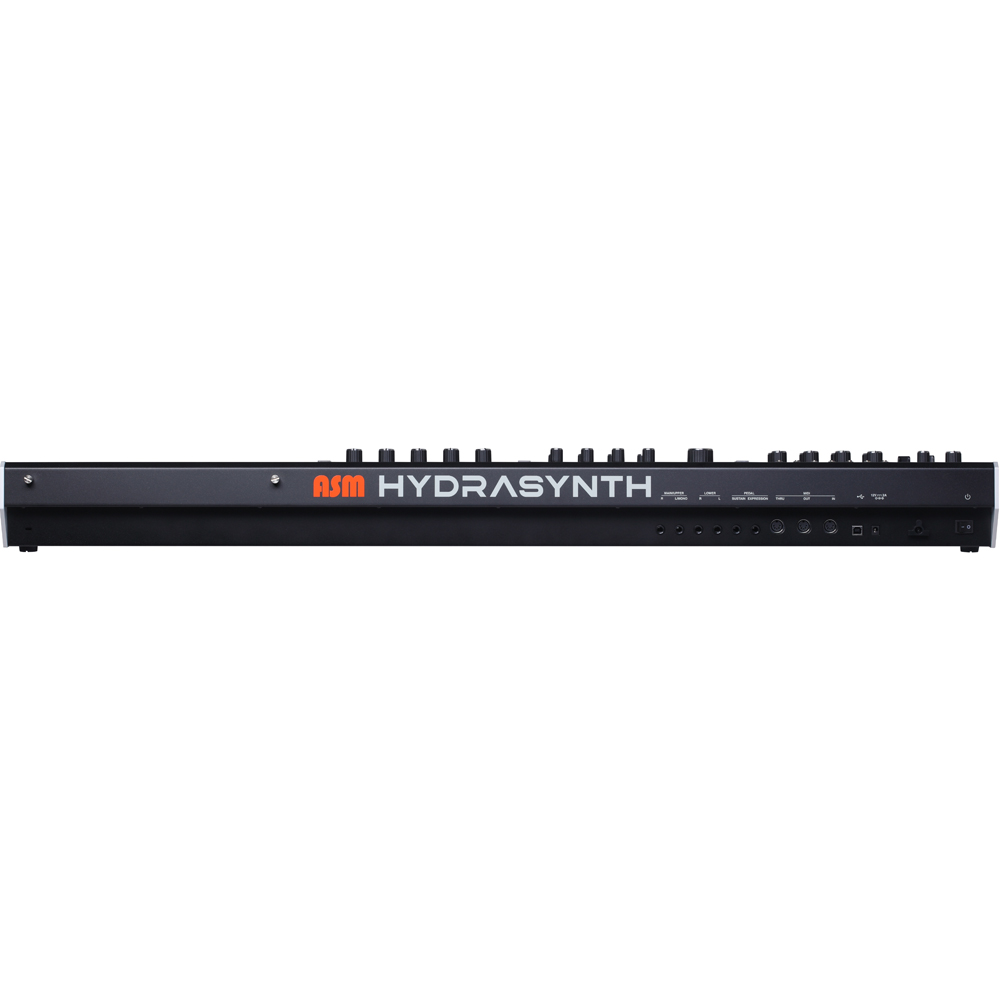

ASM HydraSynth Deluxe Digital Poly Synth

The ASM HydraSynth Deluxe is the new flagship Hydrasynth. Offering a dual-engine setup with a total of 16 voices plus an all new 73-note keybed featuring ASM's much sought after PolyTouch® polyphonic aftertouch functionality, clearly in a class of its own.

With essentially two Hydrasynths in one instrument, KeySplit and Dual voice mode patches with 8 independent voices each are possible. You also have separate balanced stereo audio outputs for each of the two parts. The easily accessible 4 octave ribbon controller adds for truly expressive playing.

The Hydrasynth Deluxe of course offers CV/GATE I/O for interfacing to modular and other voltage controlled synths. There's a ton of potential for sound creation, using ASM's WaveScan oscillators
together with the Mutator waveshaping section and user configurable filters. A plethora of LFO's and Envelope's plus Insert and Master Effects makes this a dream sound creation tool and quite possibly the ultimate synthesizer and controller combo for your rig.

16-voice polyphonic digital wave morphing synthesizer
Single/Multi Dual/Keysplit voicing options
POLYTOUCH™ Polyphonic Aftertouch, Note on/off velocity keyboard with 73 full-size keys
MPE (MIDI Polyphonic Expression) compatibility
Multi function ribbon controller (Modulation, Pitch bend, Theremin mode)
Microtuning support via MIDI Tuning Standard files
1024 Single program locations with Category Search
640 Multi program locations with 1280 embedded program locations
Dual stereo audio outputs

Specifications

Type: Polyphonic Wave Morphing Synthesizer

Sound Engine Type(s): Wavescan

Analog/Digital: Digital

Number of Keys: 73

Type of Keys: ASM POLYTOUCH™ Polyphonic Aftertouch Keyboard, On/Off Velocity-sensitive

Other Controllers: Ribbon Controller, Pitch Bend, Mod Wheel

Polyphony: 16 voices (Full/Layer/Split)

Number of Presets: 1024 Single Programs, 1280 Programs in Multi (Upper/Lower)

Number of Multis: 640 Programs

Oscillators: 3 x Wavescan oscillators (219 Waveforms), 4 x Mutator wave shapers (8 Types), Noise (7 Types)

Mutators: 8 Types (FM-Lin, WaveStack, PW-Orig, PW-Squeeze, PW-ASM, Harmonic Sweep, Hard Sync, PhazDiff)

Noise: 7 Types (White, Pink, Brown, Red, Blue, Violet, Grey)

LFO: 5 per Voice (Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, Step), Tempo syncable, Semitone Lock

Envelopes: 5 per voice, Tempo syncable, Variable trigger sources

Filter Types: 1 Multimode Filter (16 types) and 1 Variable LP-BP/Notch-HP filter, series or parallel routing

Filters: Filter 1 (LP Ldr12, LP Ldr24, LP Fat12, LP Fat24, LP Gate, LP MS20, HP MS20, LP 3-Ler, BP 3-Ler, HP 3-Ler, LP Stn12, BP Stn12, HP Stn12, LP 1 Pole, LP 8 Pole, Vowel), Filter 2 (LP-BP-HP, LP-Notch-HP)

Effects: 9 Insert Effects, 5 Delays, 4 Reverbs

Effects Types: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor, Distortion, Delay, Reverb

Arpeggiator: 8 types (Up, Down, Up&Down, Up/Down, Order, Random, Chord, Phrase)

Other: Mod Matrix (32 slots), Macro Controllers (8), Favorites (32), Randomizer (Patch and Module), MPE Compatibility, Warm Mode, Microtuning

Audio Outputs: 4 x 1/4" Balanced (L/Mono Upper, R Upper, L Lower, R Lower)

Headphones: 1 x 1/4", 1 x 1/8", Separate volume control

USB: 1 x Type B

MIDI I/O: In/Out/Thru

Pedal Inputs: 2 x 1/4" (expression, sustain)

Other I/O: 2 x 1/8" Inputs (Mod 1, Mod2), 5 x 1/8" Outputs (CV, Gate, Mod1, Mod2, Clock)

Power Supply: 12V DC switchable power supply

Additional: Utility shelf

Height: 3.62" / 9.2cm

Width: 44.45" / 112.9cm

Depth: 13.62" / 34.6cm

Weight: 29.33lbs / 13.3kg
